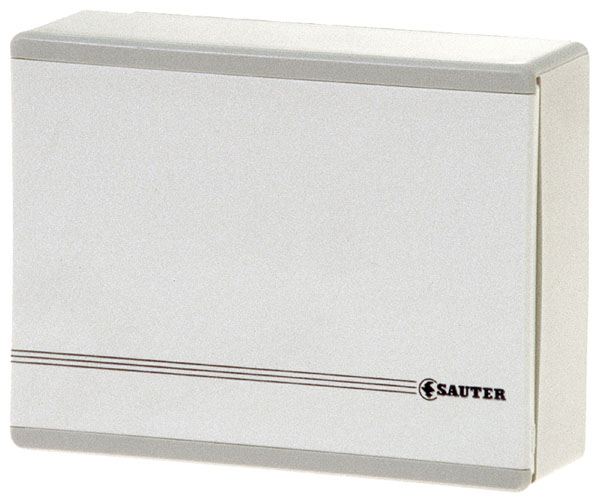

Room-temperature transducer
TSUP
How energy efficiency is improved
Accurate recording of room temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Continuous pneumatic measurement and/or control of room temperature in combination with pneumatic control equipment (Centair).
Properties
Technical description
Accurate recording of room temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Continuous pneumatic measurement and/or control of room temperature in combination with pneumatic control equipment (Centair).
Properties
- Part of the Centair family of systems
- Conversion of room temperature into a standard 0.2 to 1.0 bar pneumatic signal
- Lid in thermoplastic with grey/white frame (RAL 9002) and pure-white front panel (RAL 9010)
- Compressed-air connection on plug nipple for flexible plastic hose int. ø 4 mm
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Nozzle/ball system
- Linearity of output signal <2%
Tabele sa podacima
Uputstva za ugradnju
Ostala dokumenta
Brošure
TSUP: Room-temperature transducer
pdf : 121 KB
pdf
TSUP1
pdf : 233 KB
pdf
Centair. The pneumatic universal controller system for air-conditioning and heating systems
pdf : 405 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
