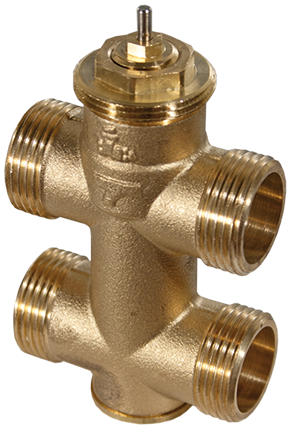

3-way unit valve, PN 16 (el.)

BUT

3-way unit valve, PN 16 (el.)

How energy efficiency is improved

Linear mixture without loss through leakage in the control passage for energy-efficient control


Karakteristike

  • Regulation of fan coil units, air secondary-treatment units, heating zones and two-pipe systems with heat exchanger in combination with AXF 217S, AXM 217(S), AXS 315S and AXT 301 actuators for unit valves

  • Flat-sealing standard version

  • Special model for fan coil units with cast-on bypass T-piece

  • Control passage closed when spindle is pushed in

  • Used as a control valve

  • Valve with male thread as per DIN EN ISO 228-1, class B

  • Valve body made of cast brass

  • Stainless-steel spindle

  • Plug with soft seal made of EPDM for control passage and mixing passage

  • Stuffing box with O-ring seal

  • Water quality as per VDI 2035
