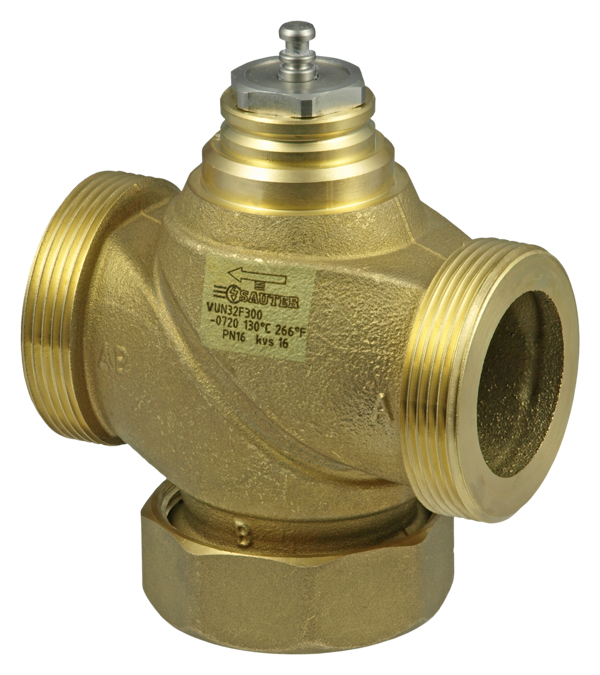

2-way valve with male thread, PN 16
VUN
How energy efficiency is improved
Reliable actuation in efficient control systems
Karakteristike
-
Regulating valve free of silicone grease with male thread (DIN EN ISO 228-1) for cold or hot water in closed and open circuits
-
In combination with valve actuators AVM 105(S), 115(S), 321(S) and AVF 124, 125S as a control unit
-
Equal-percentage (F300) / linear (F200) characteristic, can be set with SUT valve actuators (SAUTER Universal Technology)
-
The valve is closed when the spindle is moved out
-
Closing procedure against the pressure or with the pressure
-
Stainless-steel spindle
-
Valve body and valve seat in dezincification-resistant (DZR) cast brass
-
Plug with glass-fibre-reinforced PTFE sealing ring made of dezincification-resistant (DZR) cast brass
-
Stuffing box with wiper ring made of dezincification-resistant (DZR) cast brass and double O-ring seal made of EPDM
